起源の場所:
安平、衡水、中国
ブランド名:
Hengyuan
証明:
ISO, CIQ, CE, SGS
モデル番号:
HY0727001
私達に連絡しなさい
| Attribute | Value |
|---|---|

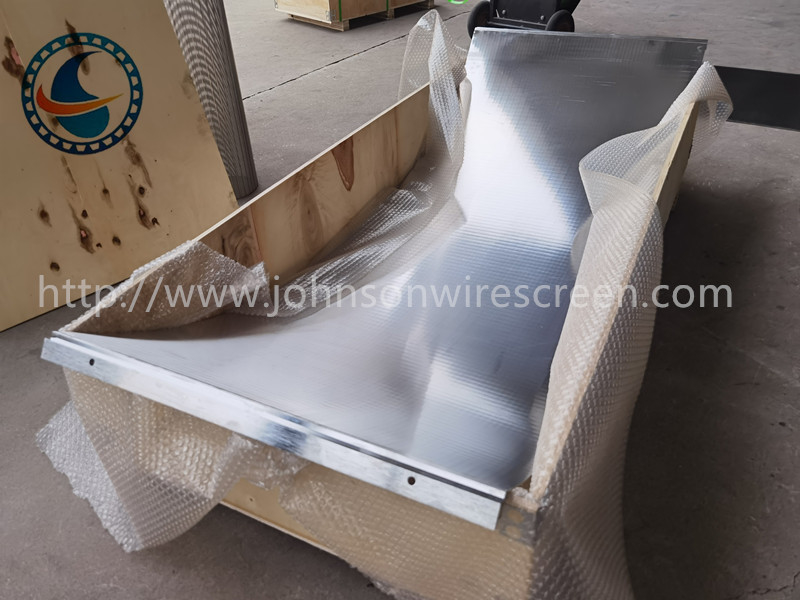

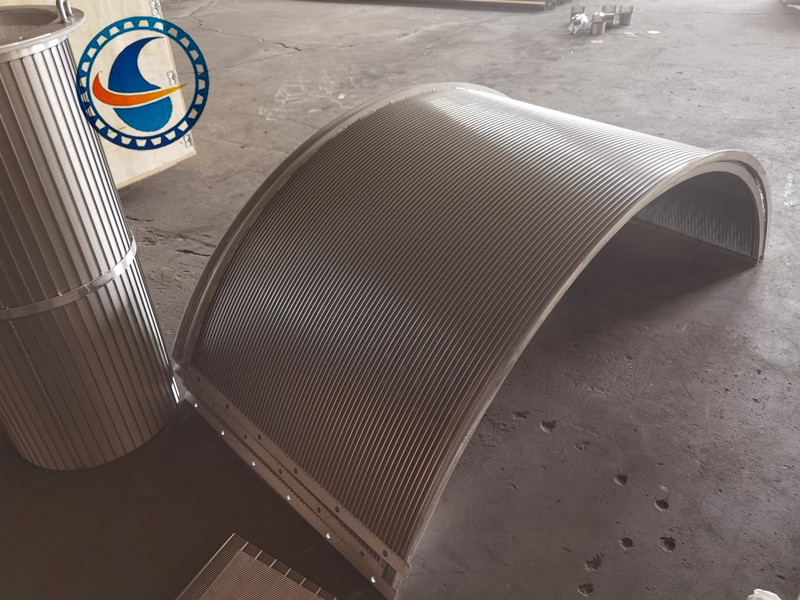

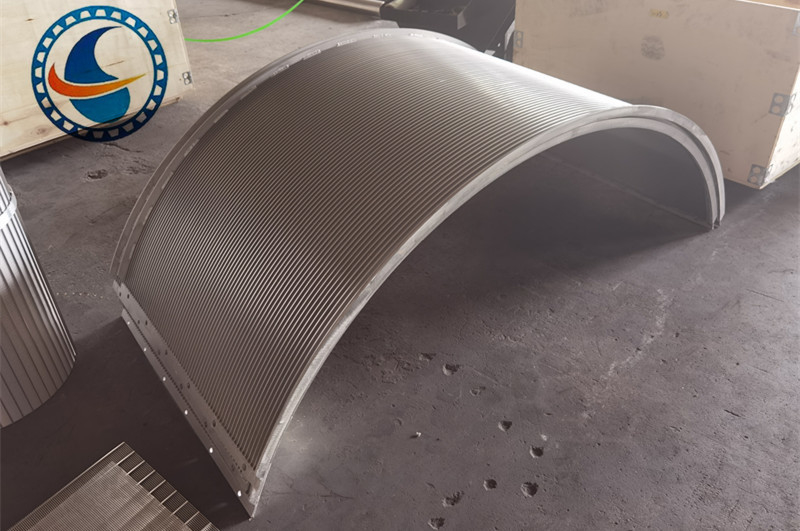

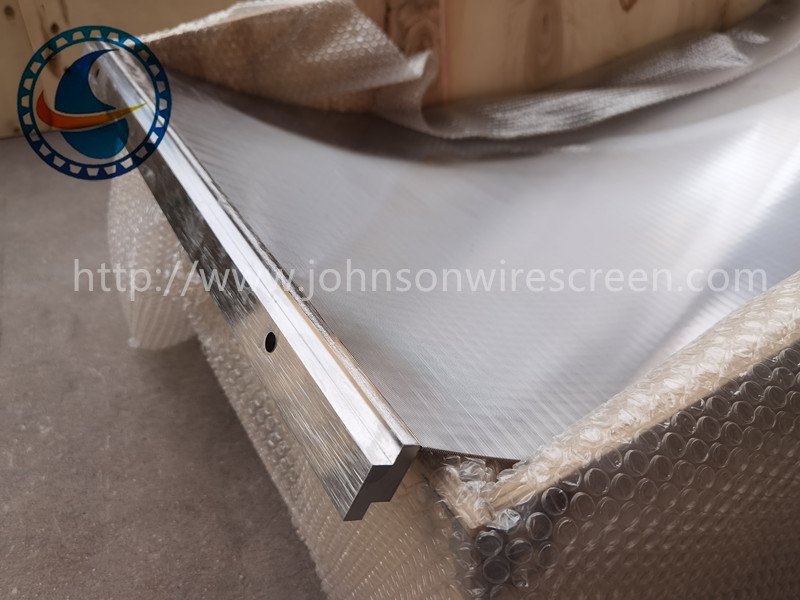

| Name | Wedge Wire Arc Screen Filter |
| Material | Stainless Steel 304, 316L, 321, Titanium |
| Size | Up to 4000 × 4000mm |
| Slot | 0.025-100mm |
| Wedge Wire | 1×2, 1.2×2, 1.5×2, 2×3, 2×3.5, 3×4.6, 3×5mm |
| Support Rod | 2×3mm V wire |
| Parameter | Options |
|---|---|
| Material Options | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy |
| Slot Range | 20 micron to 3000 micron (Tolerance: ±5 micron) |
| Wedge Wire Options | 1×2 | 1.2×2 | 1.5×2 | 2×3 | 2×3.5 / 2.2×3.5 | 3×4.6 / 3×5 | 3×6 |
| Support Rod Options | 2×3, 3×4.6, 3×5, 3×6, 2×10, 3×10 |
| Angle Options | 90°, 120°, 140°, 150°, 160° |
| Arc Height | 10mm, 15mm, 20mm, 50mm or customized |
| Frame Options | No frame or "L" type frame, ordinary frame, 5×10mm frame (customizable) |
