起源の場所:
河北,中国
ブランド名:
Heng Yuan
証明:
ISO9000
モデル番号:
HY0727003
私達に連絡しなさい
| Attribute | Value |
|---|---|
| Name | Wedge Wire Screen Panels |
| Material | Stainless steel 316L, 304, 321, 2205, 2507 |
| Slot size | 0.025mm-100MM |
| Video outgoing-inspection | Provide |
| Filter rating | 75% |
| Hole shape | Slot |
| Business type | Manufacturer |
| Technique | Wedge wire, wire wound |
| OEM | YES |
| Feature | Easy leakage, non-clogging, wear resistance, corrosion resistance |

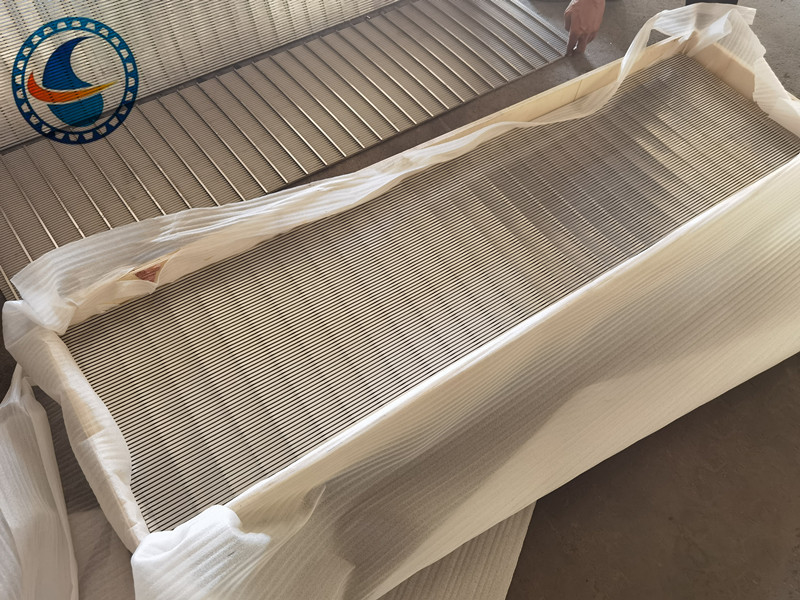

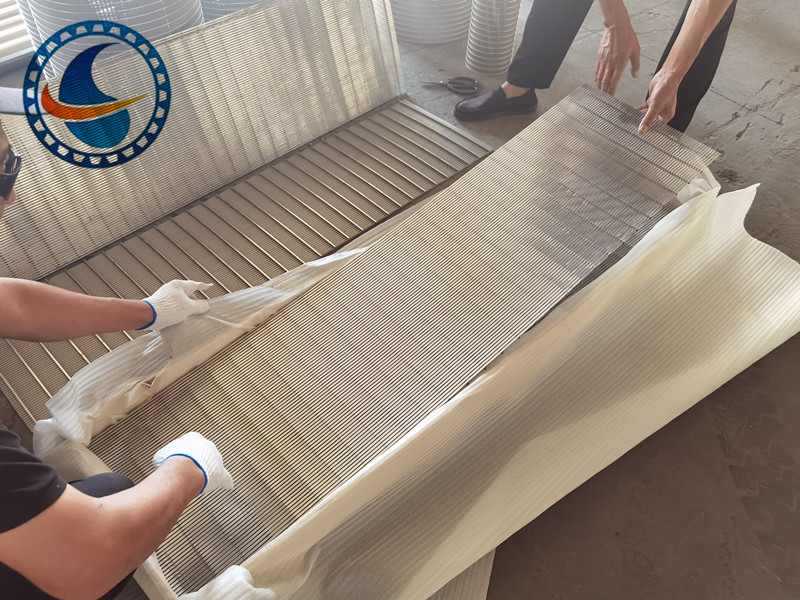

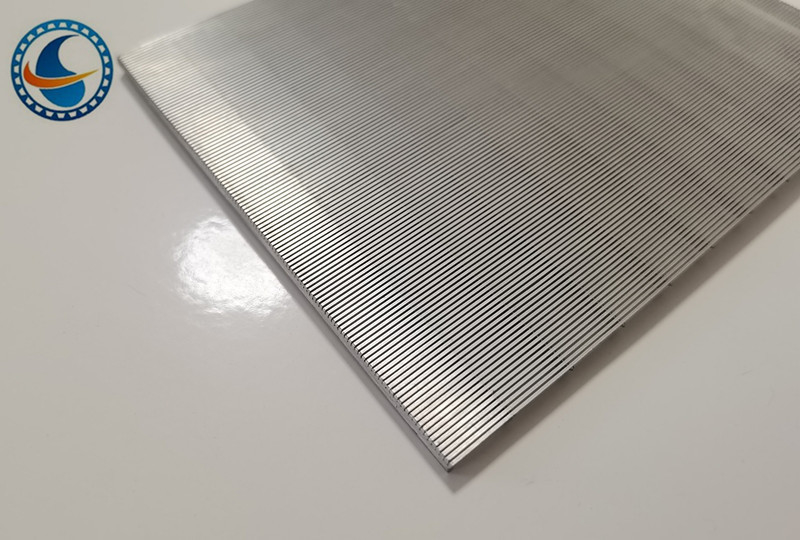

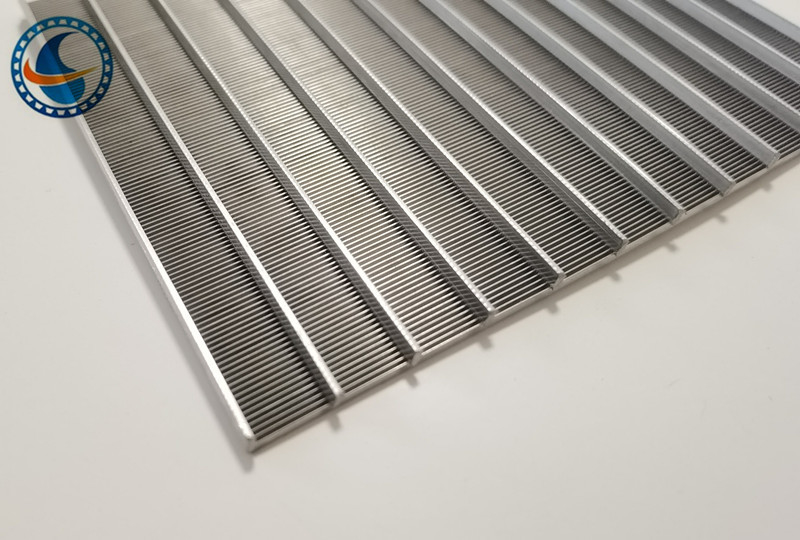

Wedge wire screen panels, also known as wedge wire screen plates, wire wrapped screens, Johnson screen plates, or Johnson screen panels, are constructed with V-shaped profile wires and longitudinal support rods. The unique V-shaped design prevents blockage while ensuring unimpeded water flow.
The consecutive slots provide greater open area, reducing water entry speed. Each intersecting point is fusion welded for sturdy construction and excellent mechanical properties. This design prevents sand from entering the screen under high pressure while allowing slot adjustments based on specific conditions.
Material: Stainless steel 302, 304, 316, 304L, 316L etc.
Slot: 0.025mm - 100mm
Discrepancy: + / - 0.05mm
Dimension: Width up to 3000 mm, length up to 4430mm
| Wire Shape | V | V | V | V | V | V |
|---|---|---|---|---|---|---|
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.0 | 2.2 | 3.0 |
| Height(mm) | 2.0 | 2.0 | 2.0 | 3.5 | 4.5 | 4.6 |
| Rod Shape | V | V | V | V | V | O |
| Width(mm) | 2.0 | 2.2 | 3.0 | 3.0 | 3.2 | Diameter |
| Height(mm) | 3.0 | 4.5 | 4.6 | 5.0 | 6.0 | 3.0~3.8 |
